PRD-17Signalling & IndicationSEGIBIZ · KOREA

Signal Tower Lamp

Name: Signal Tower Lamp
Brand: SEGIBIZ
SKU: PRD-17

Square profile, LED, Ethernet, DeviceNet and USB signal towers.

Documentation

Line Code

PRD-17

The module in detail.

Square profile signal tower lamp, LED signal tower lamp, Ethernet signal tower lamp, DeviceNet signal tower lamp and USB signal tower lamp.

Feature Set

F-01Aluminium profile construction
F-02LED color-changing system without a separate stage
F-03Network-controlled variants (Ethernet / DeviceNet / USB)
F-04Integrated lens structure for convenient maintenance

Applications

Machine status signallingRemote monitoringProduction line indication

[C]Variants

The Signal Tower Lamp formula.

VAR-01

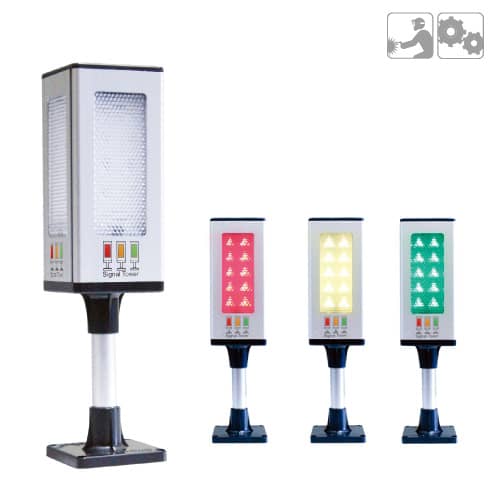

Square Profile Signal Tower Lamp

The signal lamp is made of aluminium profile and equipped with a system that changes the color of the LED itself without a separate stage.

VAR-02

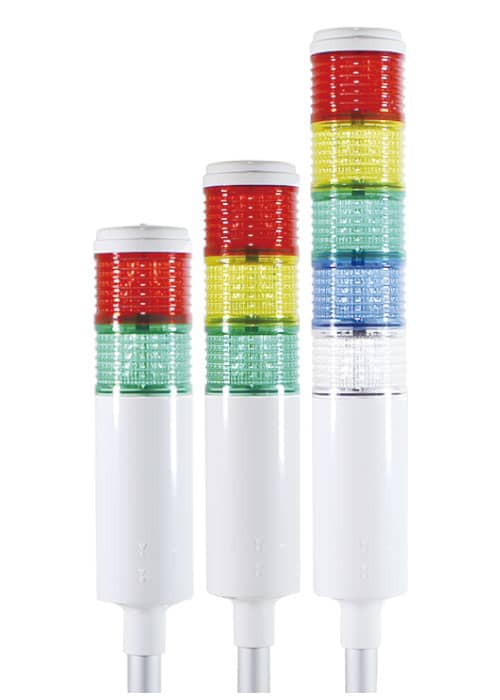

LED Signal Tower Lamp

A special vacuum evaporation treatment reflector along with high-brightness LED provides excellent divergence effect; the lens and interior are integrated into one structure for convenient maintenance.

VAR-03

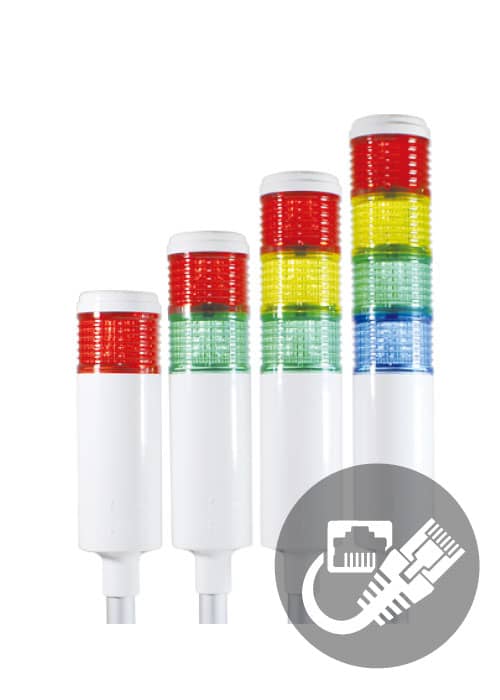

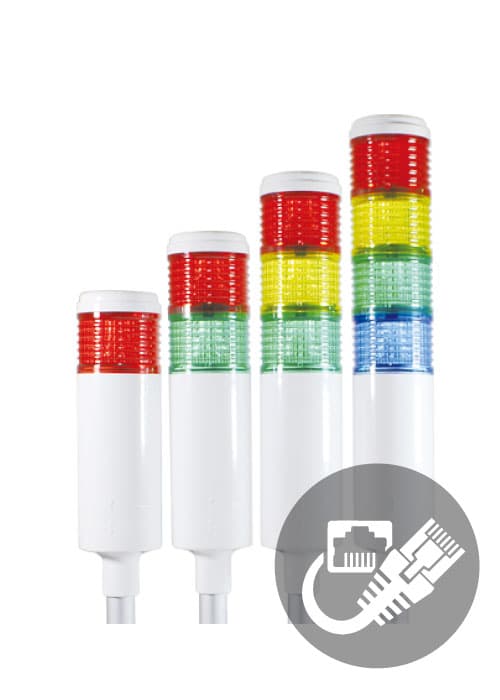

Ethernet Signal Tower Lamp

Signal tower controlled by connecting the Internet or LAN — can be used for remote control via a web browser or an application program on a computer.

VAR-04

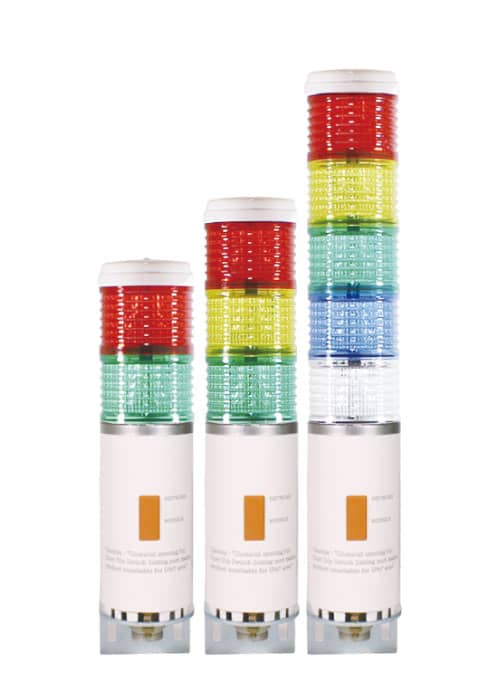

DeviceNet Signal Tower Lamp

Convenient installation and maintenance by connecting directly to the network without a separate DeviceNet dedicated I/O terminal — saving installation space and reducing the number of wires.

VAR-05

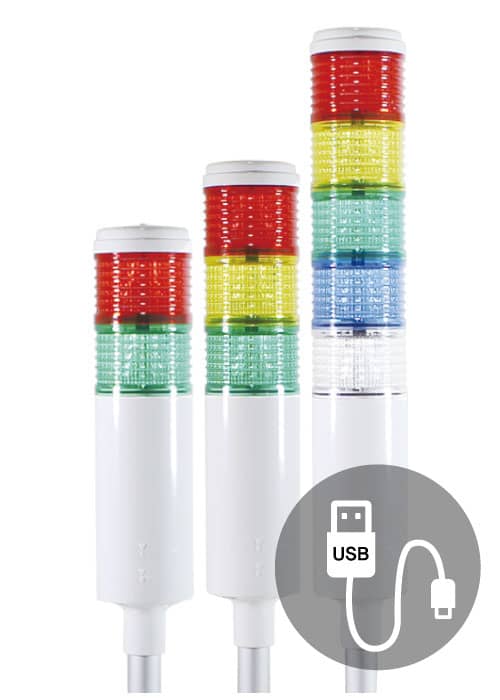

USB Signal Tower Lamp

Signal tower connected to the USB port and controlled by a program on a PC — all signals and power are supplied together through a single USB cable.

[D]Documentation

Drawings & catalogs.

Official documentation mapped to this product line.

PDFSEGIBIZ Full Catalog 2020Catalog (PDF) · CAT-001

PDFSignal Tower Lamp CatalogCatalog (PDF) · CAT-008
