PRD-16Enclosures & BoxesSEGIBIZ · KOREA

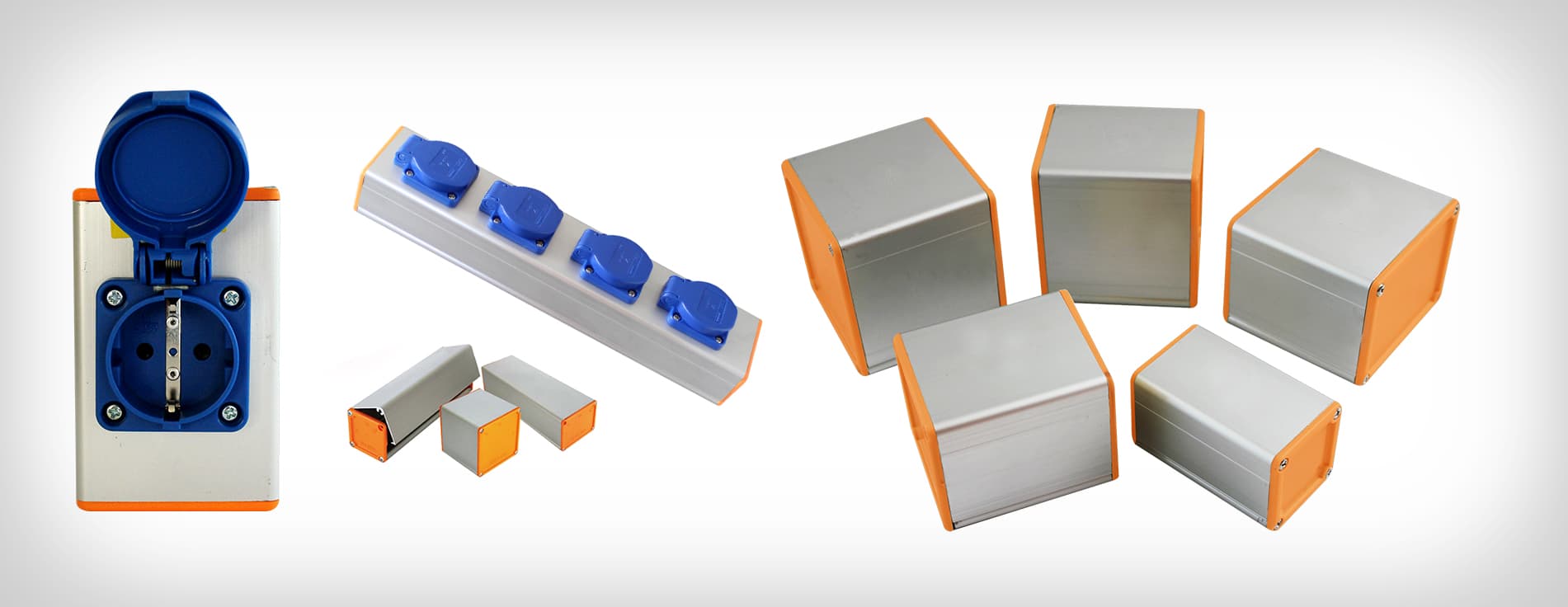

Aluminium Profile Box

Name: Aluminium Profile Box
Brand: SEGIBIZ
SKU: PRD-16

Customizable profile boxes — open with only two bolts, up to 4 M.

Documentation

Line Code

PRD-16

The module in detail.

Segibiz's aluminium profile boxes have a classy appearance and can be customized for various purposes. You can open and close the box with only two bolts; they can be customized as terminal boxes or push button boxes.

The maximum length is 4 M and a lot of options such as perforation and laser marking are open to you in make-to-order.

Feature Set

F-01Opens and closes with only two bolts
F-02Customizable as terminal box or push button box
F-03Maximum length 4 M
F-04Make-to-order options: perforation, laser marking

Applications

Terminal boxesPush button boxesCustom enclosures

[C]Variants

The Aluminium Profile Box formula.

VAR-01

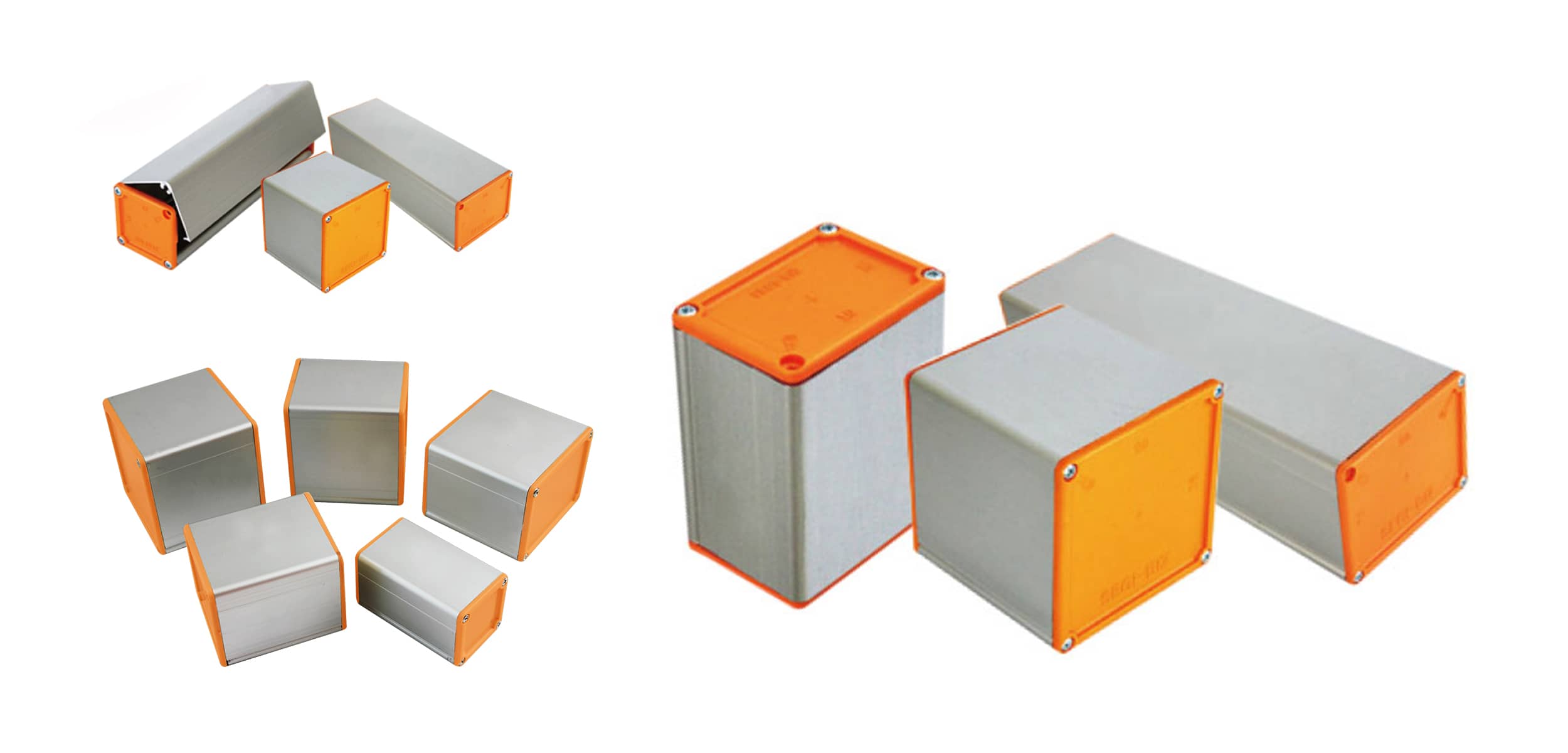

Profile Box

Segibiz's aluminium profile boxes have a classy appearance and can be customized for various purposes — opened and closed with only two bolts.

VAR-02

Profile Box Sloped Type

Sloped variant — usable for various purposes and customizable as terminal box or push button box.

VAR-03

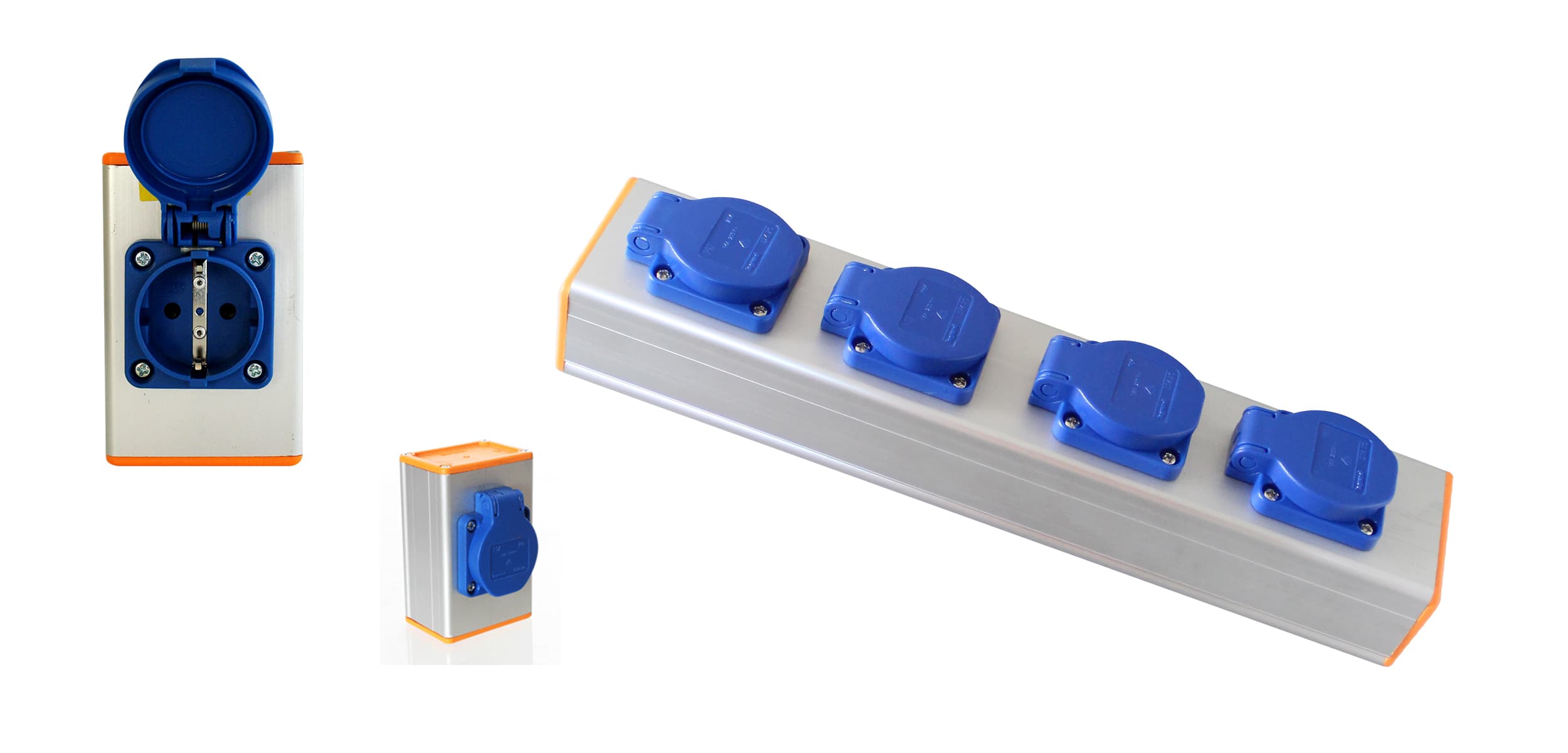

Profile Socket Boxes

Aluminium profile socket boxes, opened and closed with only two bolts, customizable.

VAR-04

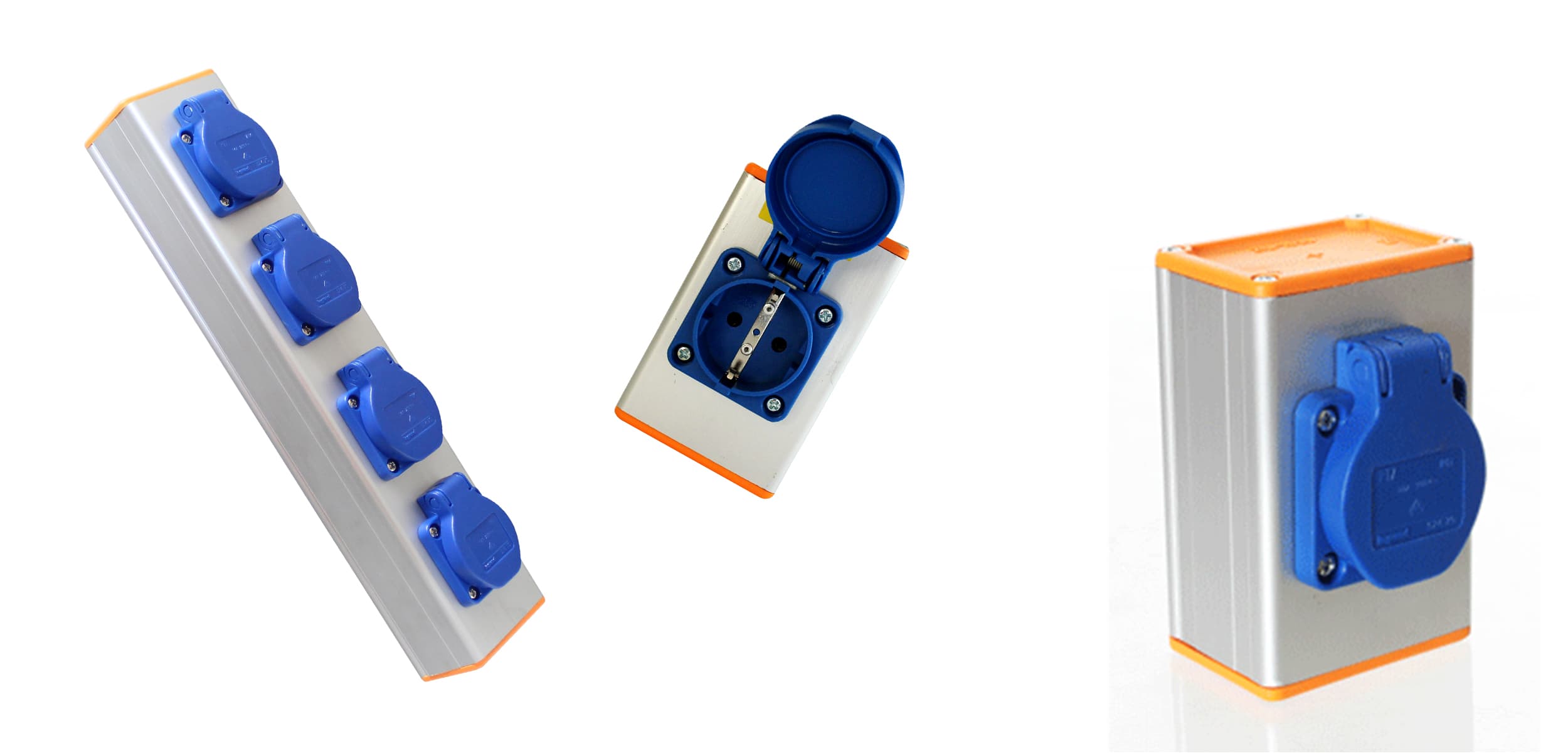

Industrial Socket Boxes

5 holes or more pieces can be made to order. The box cover is easily opened with only two bolts.

[D]Documentation

Drawings & catalogs.

Official documentation mapped to this product line.

PDFSEGIBIZ Full Catalog 2020Catalog (PDF) · CAT-001

PDFAluminium Profile Box CatalogCatalog (PDF) · CAT-004
