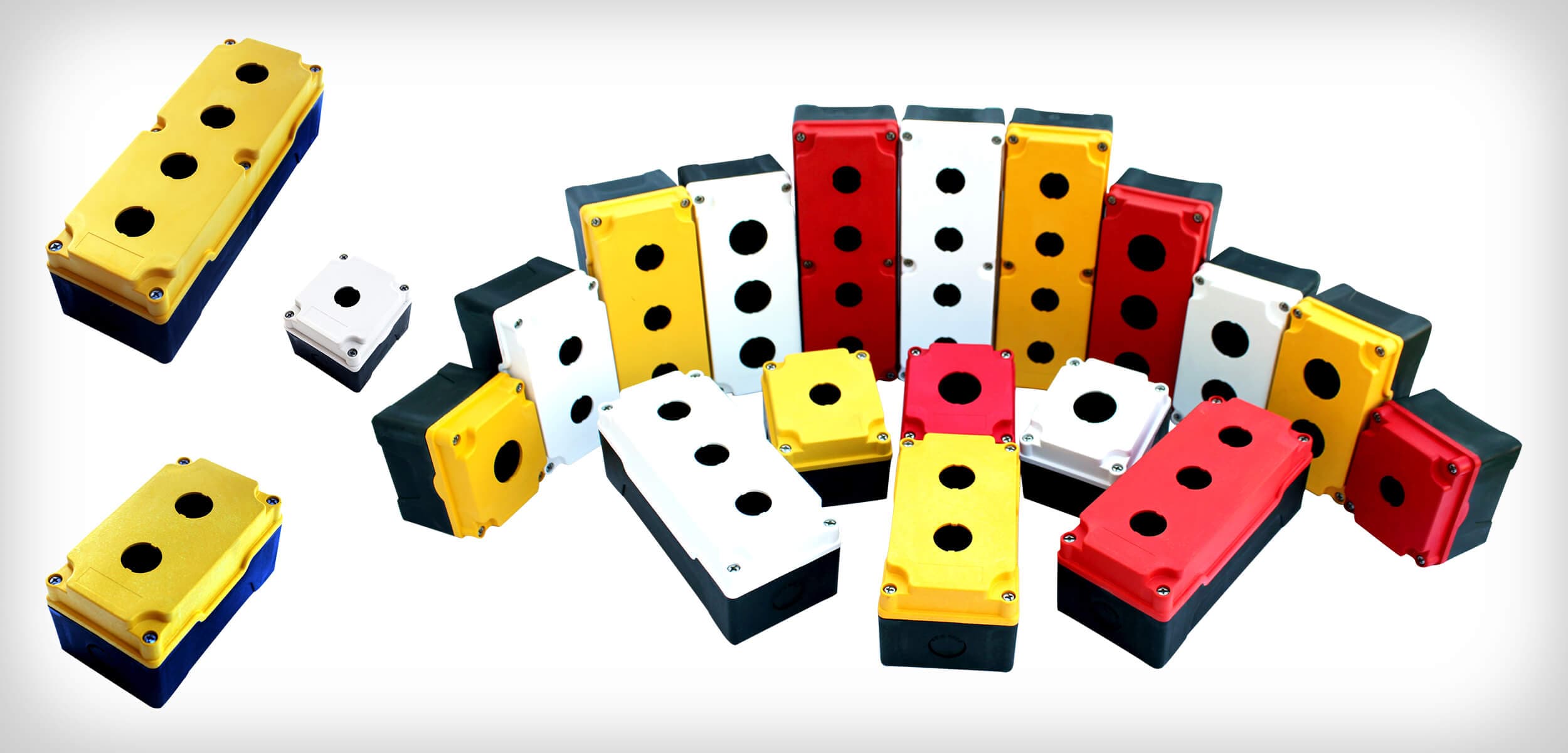

FIG.10 — GALLERY 01/18HOVER TO ZOOM · CLICK TO EXPAND

MAIN

SRC: PRD-1018 VIEWS ON FILE

PRD-10Enclosures & BoxesSEGIBIZ · KOREA

Plastic Push Button Box

Name: Plastic Push Button Box
Brand: SEGIBIZ
SKU: PRD-10

Polycarbonate push button enclosures with height options.

Documentation

Line Code

PRD-10

The module in detail.

Material is PC (Polycarbonate) — solid and light with high oil/temperature resistance. It offers a choice of height and hole number and sizes.

Specification

01Material: PC (Polycarbonate)

Feature Set

F-01PC (Polycarbonate) material
F-02Solid and light
F-03High oil / temperature resistance
F-04Choice of height, hole number and sizes

Applications

Push button stationsControl stationsMachine operator panels

[B]Model Register

17 production models on file.

Dimensions and masses as published. Download the DWG floor plan for your CAD environment.

Plastic Push Button Box models with dimensions and CAD downloads
Model	Type	Size (mm)	Weight	Floor Plan
SG-PB-1201	PC	51 × 60 × 45	139 g	DWG
SG-PB-1601	PC	51 × 60 × 45	139 g	DWG

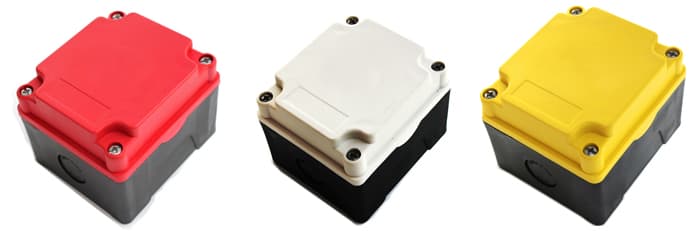

SG-PB-0001	No hole	90 × 80 × 55alt: 90 × 80 × 70	178 g	DWG
SG-PB-2201	PC	90 × 80 × 55alt: 90 × 80 × 70	178 g	DWG
SG-PB-2501	PC	90 × 80 × 55alt: 90 × 80 × 70	178 g	DWG
SG-PB-3001	PC	90 × 80 × 55alt: 90 × 80 × 70	178 g	DWG
SG-PB-1602	PC	90 × 80 × 55alt: 90 × 80 × 70	178 g	DWG
SG-PB-0002	No hole	135 × 80 × 55alt: 135 × 80 × 70	231 g	DWG
SG-PB-2202	PC	135 × 80 × 55alt: 135 × 80 × 70	231 g	DWG
SG-PB-2502	PC	135 × 80 × 55alt: 135 × 80 × 70	231 g	DWG
SG-PB-3002	PC	135 × 80 × 55alt: 135 × 80 × 70	231 g	DWG
SG-PB-2203	PC	180 × 80 × 55alt: 180 × 80 × 70	253 g	DWG
SG-PB-2503	PC	180 × 80 × 55alt: 180 × 80 × 70	253 g	DWG
SG-PB-3003	PC	180 × 80 × 55alt: 180 × 80 × 70	253 g	DWG
SG-PB-2204	PC	220 × 80 × 55alt: 220 × 80 × 70	686 g	DWG
SG-PB-2504	PC	220 × 80 × 55alt: 220 × 80 × 70	686 g	DWG
SG-PB-3004	PC	220 × 80 × 55alt: 220 × 80 × 70	686 g	DWG

* Comparing with the real product, dimensions may show a minute gap.

[D]Documentation

Drawings & catalogs.

Official documentation mapped to this product line.

PDFSEGIBIZ Full Catalog 2020Catalog (PDF) · CAT-001

DWGSG-PB-1201Plastic Push Button Box · PPB-01

DWGSG-PB-1601Plastic Push Button Box · PPB-02

DWGSG-PB-0001 (No hole)Plastic Push Button Box · PPB-03

DWGSG-PB-2201Plastic Push Button Box · PPB-04

DWGSG-PB-2501Plastic Push Button Box · PPB-05

DWGSG-PB-3001Plastic Push Button Box · PPB-06

DWGSG-PB-1602Plastic Push Button Box · PPB-07

DWGSG-PB-0002 (No hole)Plastic Push Button Box · PPB-08

DWGSG-PB-2202Plastic Push Button Box · PPB-09

DWGSG-PB-2502Plastic Push Button Box · PPB-10

DWGSG-PB-3002Plastic Push Button Box · PPB-11

DWGSG-PB-2203Plastic Push Button Box · PPB-12

DWGSG-PB-2503Plastic Push Button Box · PPB-13

DWGSG-PB-3003Plastic Push Button Box · PPB-14

DWGSG-PB-2204Plastic Push Button Box · PPB-15

DWGSG-PB-2504Plastic Push Button Box · PPB-16

DWGSG-PB-3004Plastic Push Button Box · PPB-17
